Pressure measurement plays a fundamental role in science, engineering, and industry. From monitoring tire pressure to regulating industrial boilers, accurate pressure readings ensure that systems operate safely and efficiently. Among the many terms used in pressure measurement, PSI (pounds per square inch) and PSIG (pounds per square inch gauge) are often mentioned. While these terms are sometimes used interchangeably, they carry distinct meanings that can significantly impact technical applications. Misunderstanding them can lead to incorrect readings, safety risks, and costly errors.
Understanding pressure units is vital in engineering. Converting psig to psi avoids errors in measurement. PSI represents absolute pressure relative to a vacuum, while PSIG measures pressure above atmospheric levels. Misinterpreting PSIG/PSI can affect safety and performance in systems like HVAC, tires, and industrial equipment.
This article explores the concepts of PSI and PSIG, their differences, and their practical applications across industries.
What is PSI?
PSI (pounds per square inch) is a unit of pressure commonly used in the United States and other regions that follow imperial measurement systems. It quantifies the force applied per square inch of surface area.
When pressure is expressed simply as PSI, it typically refers to absolute pressure (PSIA)—that is, pressure measured relative to a perfect vacuum. A vacuum is considered zero pressure, so PSI includes both atmospheric pressure and any additional applied pressure.
For example:
- At sea level, the Earth’s atmosphere exerts about 14.7 PSI. This value represents standard atmospheric pressure.
- If a closed container measures 50 PSI (absolute), it means the internal pressure is 50 pounds per square inch greater than a complete vacuum.
In short, PSI (absolute) takes into account both atmospheric pressure and the pressure of the system being measured.
What is PSIG?
PSIG (pounds per square inch gauge) refers specifically to gauge pressure, or pressure measured relative to atmospheric pressure. Instead of using a vacuum as the baseline, PSIG uses the surrounding air pressure at sea level (approximately 14.7 PSI) as the reference point.
This is why many common pressure readings, such as car tire pressure or pressure in HVAC systems, are expressed in PSIG. In these cases, the only concern is how much the system’s pressure exceeds atmospheric pressure—not the total absolute pressure.
For example:

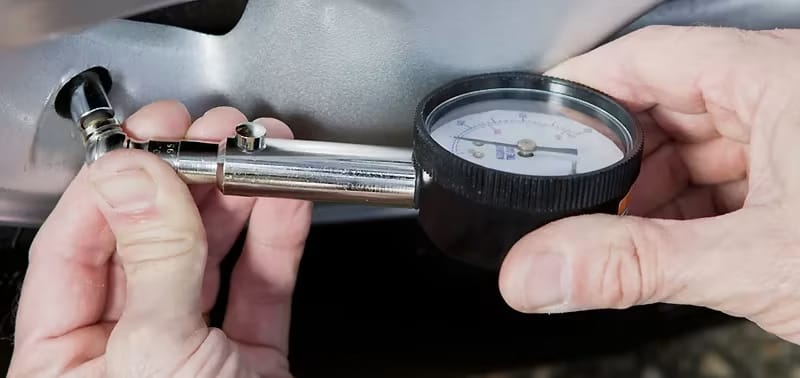

- If your car tire reads 32 PSIG, this means the pressure inside the tire is 32 PSI greater than the surrounding atmosphere.
- In absolute terms, the same tire’s pressure would be approximately 46.7 PSIA (32 + 14.7).
Thus, PSIG readings simplify practical measurements by ignoring atmospheric pressure and focusing only on usable pressure above ambient conditions.
PSI vs. PSIG: Key Distinctions
The core difference between PSI and PSIG lies in the reference point used to measure pressure:
- PSI (Absolute Pressure): Measured relative to a vacuum (zero pressure).
- PSIG (Gauge Pressure): Measured relative to atmospheric pressure.
This distinction has several implications:
- Inclusion of Atmospheric Pressure
- PSI includes atmospheric pressure (14.7 PSI at sea level).
- PSIG excludes atmospheric pressure.
- Application Contexts
- PSI is important in scientific and technical fields where total pressure is needed.
- PSIG is more common in everyday and industrial applications, such as air compressors, pipelines, or vehicle tires.
- Safety Considerations Using the wrong unit can cause errors in system design. For example, confusing PSIG with PSI could lead to underestimating or overestimating the actual pressure within a vessel, which may compromise safety.
Practical Applications of PSI and PSIG
Both PSI and PSIG are essential in different contexts:
- Automotive Industry Tire pressure is measured in PSIG because the focus is on pressure above atmospheric levels. Drivers don’t need to factor in the air outside the tire—they only care about the usable pressure inside.
- HVAC Systems Heating, ventilation, and air conditioning systems rely on PSIG readings to ensure refrigerants and gases are maintained at optimal pressures.
- Industrial Equipment Boilers, pumps, and compressors often use PSIG to regulate operations. However, absolute PSI values may be necessary when comparing pressures across varying altitudes or conditions.
- Scientific Research Laboratories and research facilities often rely on absolute PSI (PSIA) to ensure precise measurements in controlled environments, especially when working with vacuum systems or gas laws.
Converting Between PSI and PSIG
Converting between PSI (absolute) and PSIG is straightforward once atmospheric pressure is taken into account:
PSIA=PSIG+14.7\text{PSIA} = \text{PSIG} + 14.7PSIA=PSIG+14.7PSIG=PSIA−14.7\text{PSIG} = \text{PSIA} – 14.7PSIG=PSIA−14.7
For example:
- A reading of 50 PSIG equals 64.7 PSIA.
- A reading of 30 PSIA equals 15.3 PSIG.
These conversions are crucial for engineers and technicians who work with both scientific (absolute) and practical (gauge) pressure systems.
Why the Difference Matters
The distinction between PSI and PSIG is not just academic—it has real-world consequences:
- Engineering Design When designing pressure vessels, pipelines, or hydraulic systems, engineers must specify whether values are in PSI or PSIG. A simple mislabeling could lead to catastrophic failure.
- Altitude Variations Atmospheric pressure changes with altitude. For example, at higher elevations, atmospheric pressure is lower than 14.7 PSI. This means PSIG readings may vary with location, while PSIA remains consistent.
- Safety and Compliance Regulatory agencies often require clear identification of whether measurements are absolute or gauge. Inaccuracies could result in non-compliance, fines, or safety hazards.
Conclusion
Understanding the difference between PSI and PSIG is essential for accurate pressure measurement and safe operation of equipment across industries. PSI (absolute) accounts for total pressure relative to a vacuum, while PSIG (gauge) measures pressure relative to atmospheric levels.
From checking tire pressure to designing industrial pipelines, knowing when to use PSI versus PSIG ensures accuracy, efficiency, and safety. For engineers, technicians, and even everyday users, this knowledge helps avoid costly mistakes and maintains reliable system performance.
Ultimately, mastering pressure measurement is about more than just numbers—it’s about protecting people, equipment, and processes.
